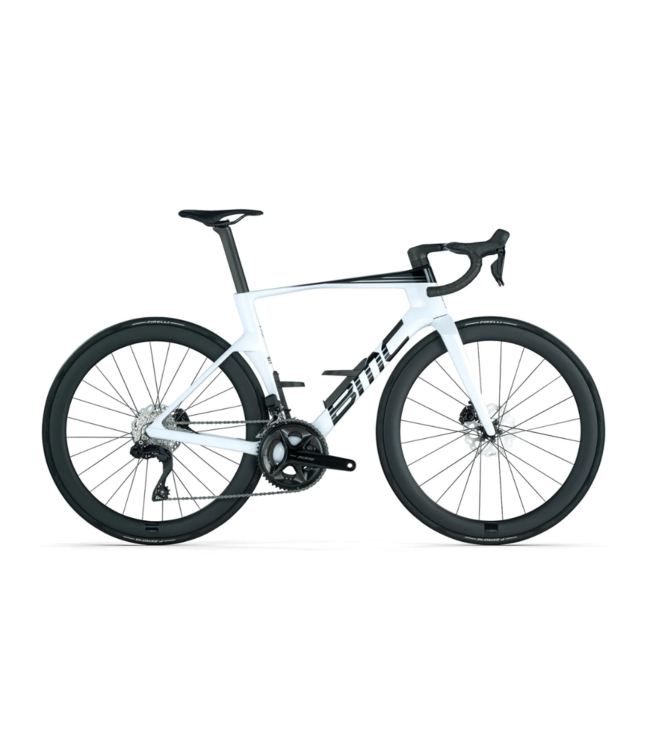

Unleashing Performance Beyond Limits. Every pedal stroke matters. Engineered in collaboration with Red Bull Advanced Technologies, the Teammachine R 01 FIVE carbon road bike sets a new benchmark for racing excellence. Designed to perform under the most demanding conditions, this racing bike comes equipped with a Shimano 105 Di2 Drivetrain, aero optimized CR 50 Carbon wheelset, and BMC’s cutting-edge ICS Aero one piece Cockpit. Experience unparalleled speed and precision every race day of your season.

Frameset
Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit
Handlebar:
ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare

Seat
Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset

Saddle:
Selle Italia SLR Boost Superflow | Manganese Rail | 145mm

Drivetrain
Crankset:
SHIMANO 105 (FC-R7100)

Chainrings:
52-36T

Cassette:
SHIMANO 105 (CS-R7101)

Cassette Size:
11-34T

Chain:
SHIMANO CN-M6100

Front Derailleur:
SHIMANO 105 Di2 (FD-R7150)

Rear Derailleur:
SHIMANO 105 Di2 (RD-R7150)

Shifters:
SHIMANO 105 Di2 (ST-R7170)

Gears:
2 x 12

Bottom Bracket:
SHIMANO Press Fit SM-BB72

Brakes
Brake Levers / Calipers:
SHIMANO 105 (BR-R7170)

Rotors:
SHIMANO SM-RT70 | Centerlock [or] SHIMANO 105 (RT-CL700)

Rotor Size (F/R):
160 / 160mm

Wheels
Rims:
CR 50 Carbon | Tubeless Ready | 50mm

Hubs (F/R):
TXC-812 & TXC-240 Centerlock

Tires:
Pirelli P Zero Race TLR | 26mm

Tubeless Information:
Tubeless Rim | Tubeless Tires

Additional Information
Tire Clearance:
30mm

Weight without Pedals:
7.8kg | Size 54 with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg
