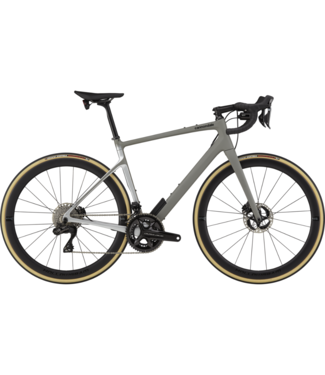

Road Reimagined. Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse—our most comfortable, all-around, up-for-anything, pure road machine.
Where it thrives
The open road, up & down hills, rough pavement
What it's built for
Comfort, handling, going long
Highlights
- Lightweight Synapse Carbon frameset / Full SmartSense integration with radar and lights
- Shimano Dura Ace Di2, 12-speed electronic group with hydraulic disc brakes
- HollowGram 45 SL KNØT carbon wheelset / HollowGram SAVE SystemBar
Geometry
Sizing
Specs
Frame Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm Speed Release thru axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
Fork Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm Speed Release thru-axle, thru-tube internal routing, hidden fender mounts
Wheels HollowGram 45 SL KNØT, Carbon, 20h front, 24h rear, 45mm deep, 21mm IW, tubeless ready
Hubs (F) HollowGram KNØT, sealed bearing 12x100mm centerlock / (R) HollowGram KNØT, 12x142mm centerlock w/DT Swiss 240 internals
Spokes DT Swiss Aerolite, straight-pull
Tires Vittoria Corsa tan wall, 700 x 30c
Bottom Bracket Shimano R9100 BSA
Crankset Shimano Dura-Ace, BSA, 50/34
Shifters Shimano Dura-Ace Di2 hydraulic disc
Front Derailleur Shimano Dura-Ace Di2, braze-on
Rear Derailleur Shimano Dura-Ace Di2
Cassette/Freewheel Shimano Dura-Ace
Chain Shimano Dura-Ace
Brakes Shimano Dura-Ace Di2 hydraulic disc, 160/160mm RT900 rotors
Brake Levers Shimano Dura-Ace Di2 hydraulic
Handlebars HollowGram SAVE SystemBar, Carbon, 8 deg. pitch adjust
Tape/Grips Fabric Knurl Bar Tape
Stem HollowGram SAVE, Alloy, -6°
Headset Synapse Carbon Sealed Bearing, integrated, 1-1/4"-1-1/8"
Seatpost HollowGram SAVE Carbon SmartSense, 27.2 x 350mm (48-56), 400mm (58-61)
Saddle Fizik Tempo Argo R3, 150mm width, K:ium rails
Accessories & Extras SmartSense with Lights and Radar, Trainer-compatible thru-axle
