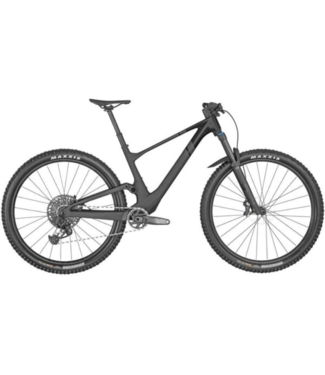

Our Spark ST line of bikes takes a classic Spark 900 vibe and adds suspension components for those aiming to spend a bit more time losing elevation. Now with a custom Float x NUDE from FOX, this short travel trail bike is as capable as ever.
Frame
Spark ST Carbon HMF
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork
FOX 34 Float Performance Elite Grip 2 Air
HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle
44mm offset / tapered steerer
140mm travel
Rear Shock
FOX FLOAT X NUDE PE EVOL Piggy Back Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Climb-Traction Control-Descend
Custom large Air volume / Comp & Reb. Adj.
Travel 120-80-Climb / T165X45mm
Remote System
TracLoc Technology
Rear Suspension & Dropper Remote
3 Rear Suspension modes
Rear Derailleur
SRAM GX Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System
Shifters
SRAM GX Eagle AXS Rocker Controller
Crankset
SRAM GX Eagle Transmission
DUB / 55mm CL / 32T
BB-Set
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN GX Eagle Transmission
Cassette
SRAM GX Eagle XS 1275 Transmission 10-52
Brakes
Shimano SLX M7120 4 Piston Disc
Rotor
Shimano SM-RT66 / 6 Bolt / F&R 180mm
Handlebar
Syncros Fraser iC SL DC Carbon
0° rise / back sweep 8° / mini Rise / 780mm
Syncros Endurance lock-on grips
Seatpost
Syncros Duncan Dropper Post 1.5
31.6mm / S size 125mm / M size 140mm / L size 150mm / XL size 150mm
Seat
Syncros Tofino 2.5 Regular
Headset
Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
Wheelset
Syncros Silverton 2.5-30 6 Bolt
F: 15x110mm
R: 12x148mm
30mm Tubeless ready rim 28H / XD Driver
Syncros Axle w/Removable Lever
with 6mm Allen
T30 and T25 Tools
Front Tire
Maxxis Dissector / 2.4WT" / 60TPI Foldable
Tubeless Ready / EXO 3C maxx Terra
Rear Tire
Maxxis Dissector / 2.4WT" / 60TPI Foldable
Tubeless Ready / EXO 3C maxx Terra
Extras
SRAM AXS Powerpack
Syncros Fork Fender
Approx weight in KG
12.7 (Tubeless setup)
Approx weight in LBS
28.00 (Tubeless setup)
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
