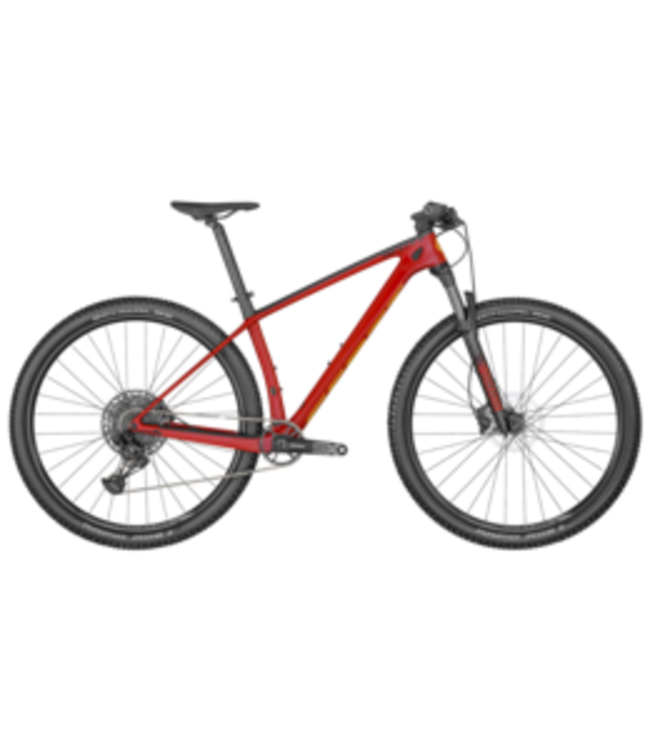

The SCOTT Scale 940 features an ultralight Carbon Frame, RockShox suspension, a SRAM Eagle drivetrain, and Syncros components to create a durable and affordable hardtail designed for world-class speed.

Key Features
- Scale Carbon HMF Frame
- RockShox Judy 100mm
- RideLoc 2-Position Remote
- SRAM NX-SX Eagle 12 Speed Drivetrain
- Shimano Disc Brakes
- Syncros X-25 Rims
- Schwalbe Rapid Rob Tires
- Syncros Parts

Sizing
Specs
Frame Scale 3 Carbon / IMP Technology / HMF, BB92 / SW DM dropouts for Boost 12x148mm, SDS2 advanced Shock & Standing Damping System, ICCR Cable routing
Fork RockShox Judy Silver TK Solo Air, 15x110mm QR axle / 42mm offset / Tapered Steerer, Reb. Adj. / Lockout / 100mm travel
Headset Syncros Pro Drop in / Tapered 1.5"-1 1/8", Bearing diameter size 42mm and 52mm
Axles Front: 110 x 15mm thru-axle
Rear: 148 x 12mm thru-axle
Rims/Wheels Syncros X-25 / 32H / 25mm
Hubs Front: Formula CL-811
Rear: Formula CL-3248
Spokes Stainless Black 15G / 1.8mm
Tires Schwalbe Rapid Rob 29x2.25" / Active line
Crankset SRAM SX Eagle DUB Boost
Chainrings 32T
Bottom Bracket SRAM DUB PF integrated / shell 41x92mm
Chain SRAM CN SX Eagle
Rear Derailleur SRAM NX / Eagle 12 Speed
Cassette/Rear Cogs SRAM SX-PG1210 / 11-50 T
Shifters SRAM SX Eagle Trigger
Handlebars Syncros Alloy 6061, T shape Flat / 9° / 740mm, Syncros Pro lock-on grips
Stem Syncros FL2.0, 6° / integrated Spacer & Top Cap, 6061 Alloy / 31.8mm / 1 1/8"
Brakes Shimano MT200 Disc
Pedals Sold separately
Saddle Syncros Belcarra Regular 2.5
Seat Post Syncros / 31.6x400mm
* Subject to change without notice.
