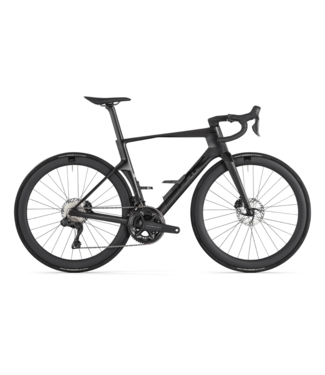

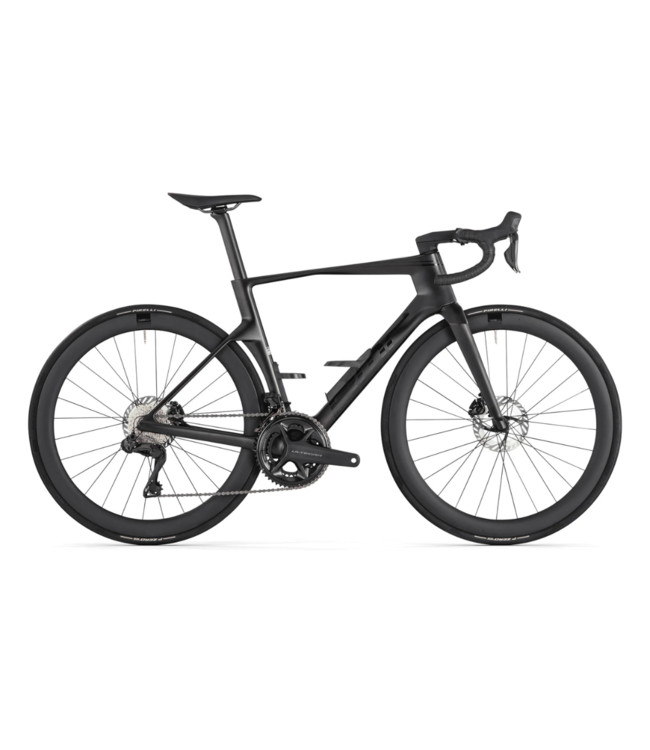

Forged on the slopes of the Swiss Alps. Hardened over the cobbles of Spring Classics. Perfected within the echelons of the Grand Tours. Developed in collaboration with Red Bull Advanced Technologies the Teammachine R isn’t just another race bike. With the Teammachine R 01 FOUR finished off with the Shimano Ultegra Di2 drivetrain including powermeter, CRD-501 Carbon Wheelset and BMC’s ICS2 Integrated Cockpit Design.
Frameset
Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Stem:
BMC ICS2 | Integrated Cockpit System Technology
Handlebar:
Easton EC70 SL Carbon or Easton EC90 SLX Carbon
Seat
Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset
Saddle:
Fizik Argo Vento R3 | 140mm
Drivetrain
Crankset:
SHIMANO Ultegra (FC-R8100)
Chainrings:
52-36T
Power Meter:
4iiii Precision Gen3+ Power Meter (Non-Drive Side)
Cassette:
SHIMANO Ultegra (CS-R8100)
Cassette Size:
11-30T
Chain:
SHIMANO CN-M8100
Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)
Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)
Shifters:
SHIMANO Ultegra Di2 (ST-R8170)
Gears:
2 x 12
Bottom Bracket:
PF86 Bottom Bracket
Brakes
Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)
Rotors:
SHIMANO RT-CL800 | Centerlock
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CRD-501 Carbon | Tubeless Ready | 50mm
Hubs (F/R):
CRD-501
Tires:
Pirelli P Zero Race TLR | 26mm
Tubeless Information:
Tubeless Ready Rims | Tubetype Tires
Accessories
Aerocore Bottle Cages
Additional Information
Tire Clearance:
30mm
Weight without Pedals:
7.5 Kg
ASTM Classification:
Level 1
System Weight Limit:
110kg
