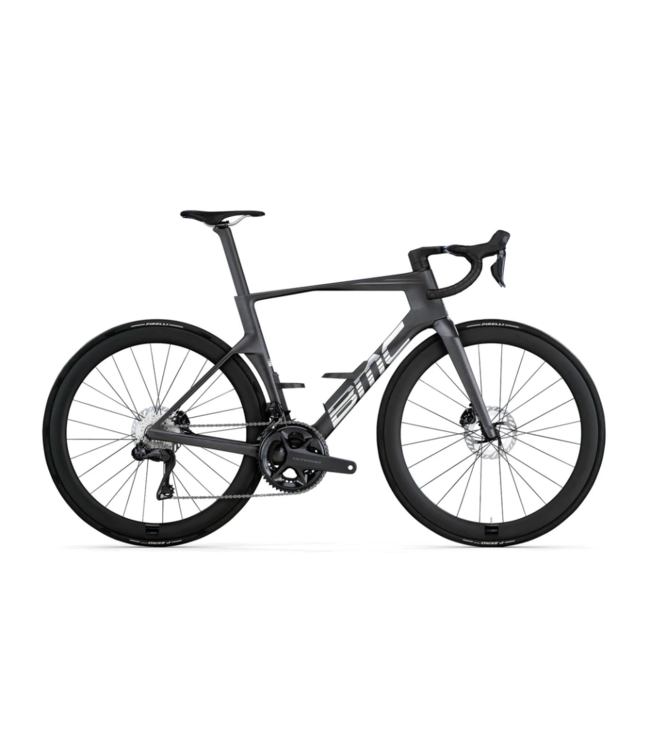

Shaped by the wind and crafted with Swiss precision, the BMC Teammachine R 01 is built for peak performance. Aerodynamic, lightweight, and engineered for speed.

Frameset
Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit
Handlebar:
ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare

Seat
Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset

Saddle:
Selle Italia SLR Boost Superflow | TI316 Rail | 145mm

Drivetrain
Crankset:
SHIMANO Ultegra (FC-R8100)

Chainrings:
52-36T

Power Meter:
4iiii Precision Gen3+ Power Meter (Non-Drive Side)

Cassette:
SHIMANO Ultegra (CS-R8101)

Cassette Size:
11-30T

Chain:
SHIMANO CN-M8100

Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)

Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)

Shifters:
SHIMANO Ultegra Di2 (ST-R8170)

Gears:
2 x 12

Bottom Bracket:
SHIMANO Press Fit SM-BB72

Brakes
Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)

Rotors:
SHIMANO Ultegra (RT-CL800)

Rotor Size (F/R):
160 / 160mm

Wheels
Rims:
CR 50 SL Carbon | Tubeless Ready | 50mm

Hubs (F/R):
TXC-812 & TXC-240 Centerlock

Tires:
Pirelli P Zero Race TLR | 26mm

Tubeless Information:
Tubeless Rim | Tubeless Tires

Accessories
In the Box:
Aerocore Bottle Cages

Additional Information
Tire Clearance:
30mm

Weight without Pedals:
7.2kg | Size 54 with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Color Reference
Color Code:
ant bru cbn

Marketing Color:
Anthracite / Carbon

Paint Direction:
Cromax X3952 & N/A

HEX Display:
#10100 & N/A

LAB Color Scan:
17, 1.5, 0 & N/A
