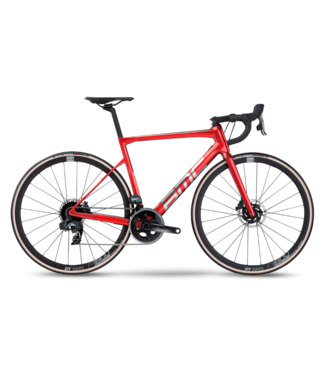

The Teammachine SLR, legendary performance in a widely accessible package. Its Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology, offers Stealth Dropouts and internal cable routing. Enjoy the cleaner lines of SRAM’s Force eTap AXS wireless groupset when paired with the Teammachine SLR TWO’s conventional bar and stem, and spin freely on DT Swiss P1800 Disc wheels.
Â
Technical Overview
Full Specifications
Geometry
Technical Details & Manuals
Frame
Teammachine SLR Carbon with Aerocore Design
• Stealth Dropout Design
• TCC Race Compliance Level
• PF86 Bottom Bracket
• Integrated Seatpost Clamp
• Flat Mount Disc
• 12x142mm Thru-Axle • Optimized for Aerocore Bottle Cages
Fork
Teammachine SLR Carbon
• TCC Race Compliance Level
• Internal Cable Routing
• Flat Mount Disc
• Stealth Dropout Design
• 12x100mm Thru-Axle
• 48mm Offset (Size 47-51), 43mm Offset (Size 54-61)
Rear Shock
Teammachine SLR Carbon D-Shaped Seatpost
• 15mm Offset
Chainwheel
SRAM FORCE AXS 48-35T
Cassette
SRAM FORCE XG-1270 10-33T
Chain
SRAM FORCE 12 Speed
Rear Derailleur
SRAM FORCE eTap AXS
Shifters
SRAM FORCE eTap AXS HRD
Brakes
SRAM FORCE eTap AXS HRD, Centerline XR Rotors (160/160)
Handlebar
BMC RAB 02, Ergo Top Shape, Compact Bend
Stem
BMC RSM01
Saddle
Fizik Antares R7
Hubs
DT Swiss 370 Spline Disc
Rims
DT SWISS P1800 Disc, 32mm
Tires
Vittoria Rubino, 25mm
Tire Clearance
30mm (Measured Width)
Weight
7.95kg / 17.53lb
Weight Limit
110kg / 242lb
ASTM Classification
Level 1
