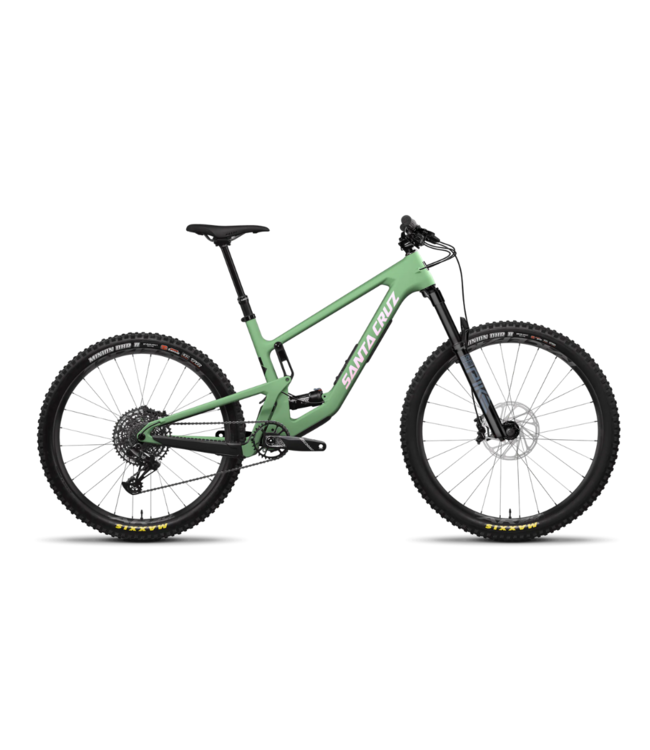

The 5010 is not just "the little bike" of our range. It makes even the most mundane trails feel like they're loaded with features to hop, skip and jump over. It's like having super-skills at your fingertips. The 5010 has always been more capable than many expected but with the traction-gaining 29-inch wheel up front and even more refined suspension the 5010 gives you a deft touch on the trails.

Available in: Carbon C & Carbon CC
Wheel size: MX
Front travel: 140
Rear travel: 130

5010 Frame Specifications
Suspension System VPP
Headset/Headtube Integrated (IS41/52)
Seat Post 31.6mm
Seat Clamp 36.4mm
Eye to Eye length 210mm
Stroke 50mm
Fork Compatibility 140mm
Fork Offset 44mm
Brake Mount PM 180mm
BB Shell 73mm Threaded
Max Tire Size 2.5"
Max Chainring Size 34t
Water Bottle Mounts 1
Shock Mounting Bushing Front 30x8
Shock Mounting Bushing Rear 30x8 (bearing compatible)

SPECS:

Frame Carbon C
Fork
RockShox Pike Select+, 140mm
Rear Shock
RockShox Super Deluxe Select+, 210x50
Rims/Wheels
RaceFace AR Offeset 30, 29"/27.5"
Hubs
DT Swiss 370, Torque Cap, 6-Bolt, XD
Spokes N/A
Tires
(F) Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO (R) Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO
Crankset
SRAM GX Eagle 148 DUB
Chainrings 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Rear Derailleur
SRAM GX Eagle, 12spd
Cassette/Rear Cogs
SRAM XG1275 Eagle, 12spd, 10-50t
Shifters
SRAM GX Eagle, 12spd
Handlebars
Burgtec RideWide Alloy
Grips
Santa Cruz Bicycles House Grips
Stem
Burgtec Enduro MK3, 42mm
Brakes
SRAM G2 R w/Avid Centerline Rotors 200mm/180mm
Pedals
Sold Separately
Saddle
WTB Silverado, CroMo
Seat Post
OneUp V2 Dropper Post, 31.6 -or- Reverb Stealth -or- Fox Transfer
*Product specifications are subject to change without notice.
