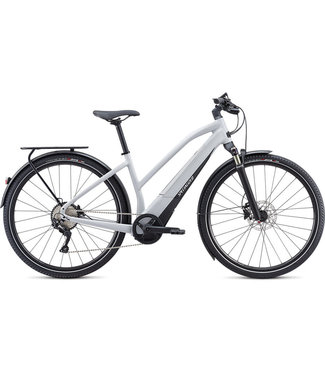

It's a busy world out there, and the sad thing is, it's getting faster all of the time. That's why we recommend faster bikes for busy lives, like the Turbo Vado 4.0 Step-Through. It takes our award-winning and exclusive technology and tailors it to a package that's designed for getting you around your day-to-day life quicker than ever before. It's you, only faster.
- The Turbo Vado frame features an alloy step-through frame that's pretty light and super easy to get on or off of.
- The Turbo Vado's Specialized 1.2 motor has been fully integrated with the frame, and it's been custom-tuned for city riding. We designed it to intuitively react to the force of your pedaling, so the harder you pedal, the more power it delivers. And with an internal belt drive design, it does this without added vibration for the smoothest and most silent ride possible.
- We made the custom 500 Wh battery to be fully integrated with the frame, removable for easy charging, and lockable for added security. It communicates with the display and has multiple modes to maximize the overall efficiency and range. For range estimates based upon a variety of variables, please refer to our Turbo Range Calculator.
Geometry chart
Sizing
Specs
Drive System Specialized 1.2, custom Rx Street-tuned motor, 250W nominal
Display Specialized TCD-W w/ handlebar remote & built-in anti-theft feature, Bluetooth connectivity, 5 available display pages
Battery Type/Weight Specialized U1-500, On/Off button, state of charge display, 500Wh
Charger Type Custom charger, 42V4A w/ Rosenberger plug
Frame E5 Aluminum, bottom bracket motor mount, Fitness/Transportation Geometry, fully integrated & lockable down tube battery, internal cable routing, fender/rack mounts, Smooth Welds
Fork SR Suntour NCX E25, steel steerer, 15mm thru-axle, 44mm offset, 50mm of travel
Axles Front: 15x100mm
Rear: 12x148mm
Rims/Wheels 700C disc, double-wall alloy, pinned
Hubs Front: Specialized front hub disc, sealed bearings, 32h
Rear: Specialized, sealed cartridge bearings, 32h
Spokes Stainless, 14g
Tires Trigger Sport Reflect, 700x47mm
Crankset Custom alloy forged crankarms
Chainrings 40T, custom alloy
Chain KMC X10eT, 10-speed w/ Missing Link
Rear Derailleur Shimano Deore, Shadow Plus, GS cage, 10-speed
Cassette/Rear Cogs Shimano HG500, 10-speed, 11-42t
Shifters Shimano Deore, 10-speed w/ Optical Gear Display
Handlebars Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Tape/Grips Specialized Body Geometry Contour, lock-on
Stem Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Brakes Shimano BR-MT200, hydraulic disc, 180mm/160mm rotors
Pedals Specialized Commuter w/ grip tape & reflectors
Saddle Specialized Aldia Sport, steel rails, 155mm
Seatpost Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm
Accessories & Extras HEADLIGHT Specialized Aspheric Lens technology, alloy housing, 300-lumen output, stem-mount, 6V
TAILLIGHT Herrmans H-Trace Mini e-Bike, 220-degree visibility, fender-mount
KICKSTAND Specialized kickstand, 40mm mount
RACK Turbo Rack, Closed Platform, direct fender mount, Racktime-compatible
FENDERS DRYTECH fenders, 52mm width, stainless steel fenderstays
BELL Simple bell
